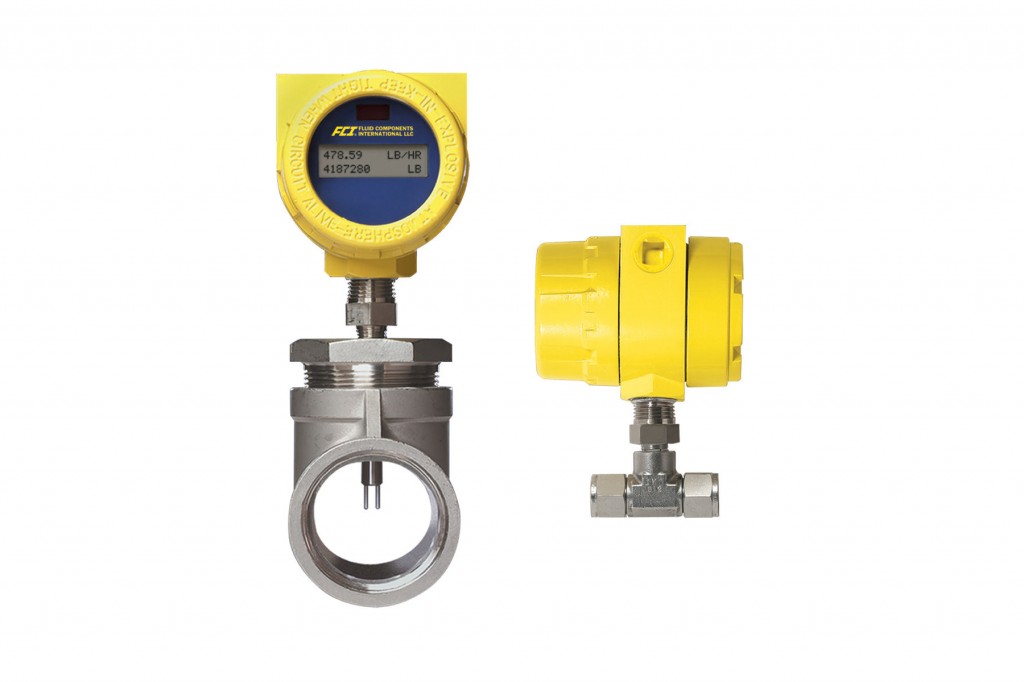

Fluid Components International - ST75A Flow Meters

The ST75 Series thermal flow meters are a compact, low cost solution for accurate, repeatable direct mass flow measurement of air and gases. These in-line (spool-piece) style flow meters have no moving parts and are available for use in pipe diameters from 1/4 inches to 2 inches, [6 mm to 51 mm]. Process connection options include male NPT, female NPT, and flanged. These thermal flow meters feature wide 100:1 turndown and depending on pipe size, will measure from 0.01 SCFM to 559 SCFM [0,01 NCMH to 950 NCMH].

Specs

Key Specifications
Maximum remote distance 100' [30 m]
Standard warranty 2 years
Accuracy Standard: ± 2% reading, ± 0.5% full scale
Repeatability ± 0.5% reading

Company Info

1755 La Costa Meadows Drive
San Marcos, CA
US, 92078

Website:
fluidcomponents.com
