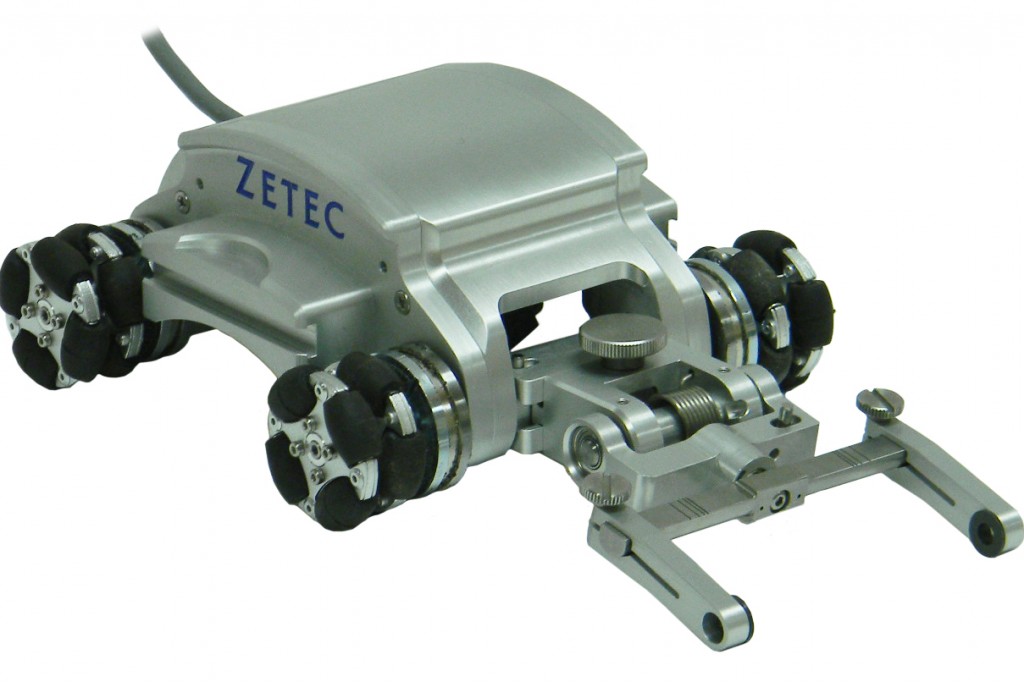

NDT Sweeper is a highly versatile manual 2D encoded scanner that is the perfect tool for quick Ultrasonic Testing (UT) examinations. NDT Sweeper can virtually replace multiple specialized scanners as a result of its ability to scan both on flat and curved surfaces. It's ideal for a range of applications including long seam weld inspections and corrosion mapping.
Thanks to its small, lightweight and ergonomic design, NDT Sweeper can easily scan in many difficult to reach areas eliminating the need to deploy an automatic scanner in those situations. Unlike wheel probes, both axes are encoded so there is no need to draw an index line on the specimen when scanning.
|Pipe Range, Circumferential||4’’ NPS (4.5’’) to flat|
|Radial Clearance||48mm (1.9") on a 4" NPS pipe; 70mm (2.8") on plane surface|
|Cart Weight||1.2kg (2.7lbs)|
