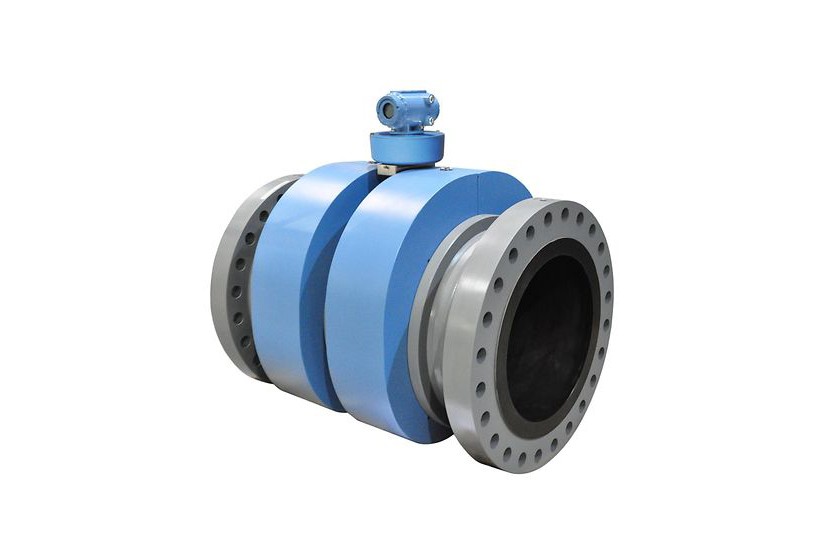

Emerson Process Management - Daniel 3418 Flow Meters

The new Daniel 3418 8-path ultrasonic flow meter crafted, developed, and designed by Emerson, offers the highest accuracy and best in class performance coupled with the same high functionality required by sophisticated fiscal measurement users. The 3418 combines the power of two interlocked 4-path British Gas design meters in one flow meter body. The second set of chords is the mirror image of the first, which allows the meter to cancel out the effects of swirl and cross flow. The 3418 Flow Meter boasts a 0.5 OIML accuracy class and requires only five diameters of straight run and no flow conditioner.

Specs

Key Specifications
Line Size DN250 to DN1050 (10-in to 42-in) with British Gas (BG) orientation
Fluid TypeGas
Accuracy ±0.1% of reading relative over entire flow calibration range
Repeatability ±0.05% of reading for 5 to 100 fps (1.5 to 30.5 m/s)
Velocity Rated up to 100 fps (30 m/s) with over-range performance exceeding 125 fps (38 m/s) on some sizes
Operating Temperature Range T-21 Transducers: -20°C to +100°C (-4°F to +212°F)T-22 Transducers: -50°C to +100°C (-58°F to +212°F)
